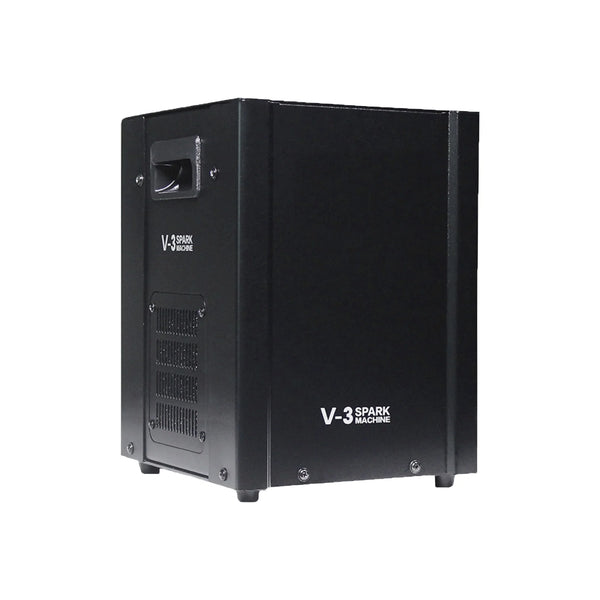

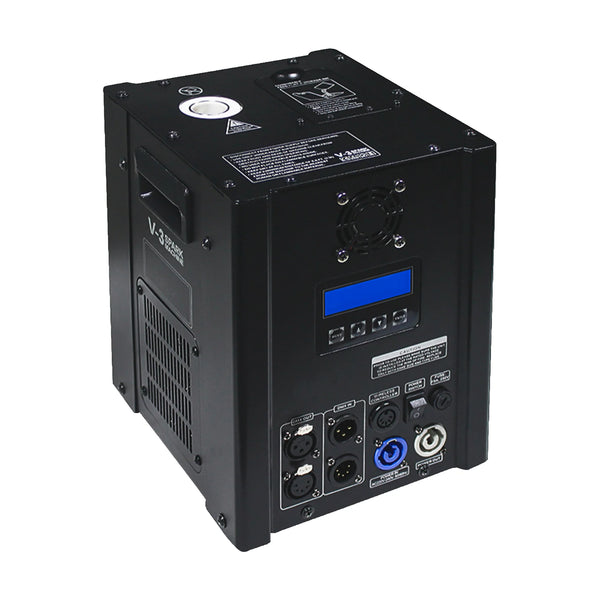

V3 Spark Machine

The V3 Spark machine creates impressive, non-hazardous effects that replicate traditional fireworks or pyrotechnics. Featuring an advanced control system and standard DMX control, it allows for multiple stage special effects.

Specifications of Our Spark Machine

Power:

• Input Voltage & Rate: 220-240V, 50/60Hz
• Total Power Consumption: 600W
• Power Input Connector: Lockable PowerCon
• Power Output Connector (Daisy Chained): Lockable PowerCon

Heating:

• Heat Up Time: Approx. 5 minutes

Fan:

• Type: DC Axial Fan
• Quantity: 2 pcs
• Input Voltage: 12V

Capacity:

• Powder Tank Capacity: 200g

Output:

• Adjustable Volume: Yes
• Volume Adjustment Level/Range: Level 1-10
• Max Output Height: Approx. 5m
• Powder Consumption at Full Volume: Approx. 11g/min
• Max Continuous Duration at Full Volume: Approx. 30 sec
• Max Continuous Output Level: Level 10
• Fully-Loaded Cumulative Output Duration at Full Volume: Approx. 14 min

Features:

• Electronic Thermo-Control: Yes
• Adjustable Output: Yes
• Adjustable Fan Speed: Yes

Control:

• On-device Manual Control: LCD Control Board
• Wireless Control: W-2 / RF 315MHz / External Receiver
• Control Protocol: DMX-512
• DMX Channel Range: 2
• Data Connectors: 3-pin XLR
• RFID Card: Yes

Accessory:

• Power Cord: Yes
• Wireless Controller Model: W-2 / RF 315MHz / Transmitter & Receiver

Consumables:

• Takes Spark PRO-K

Weight & Dimensions:

• Net Weight: 7.8 kg
• Gross Weight: 9 kg
• Machine Dimensions: 205 × 200 × 255 mm
• Packing Dimensions: 270 × 245 × 320 mm
